Guide to Closed Circuit TV (CCTV)

So would you like to play "Spot the CCTV Camera?". Eagle eyed visitors may recognise the profusion of street furniture, surrounding a single heritage dome camera keeping watch over part  of Londons' prestigious Oxford Street shopping area.

CCTV cameras on the move

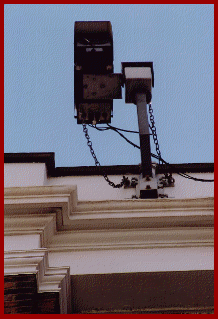

The original design for this type of pan and tilt head dates back over many decades, with the earliest models being responsible for engineering more than a few hernias in their time.

Given that 1” format tubed cameras were big, and the motorised zoom lenses used on them could be huge, that meant the weatherproof housing had to be absolutely enormous just to fit everything in.

So with overall assembly weights frequently in the twenty to thirty kilogrammes range, the pan and tilt head had to be a real bruiser just to hold its own.

With maximum weight capacities of around 50Kgs. these torsional leviathens were not to be taken lightly!!

The idea of side mounting the housing assembly, meant that there was effectively unrestricted movement, although the fact that the weight distribution was offset from the centre of gravity, could in itself cause interesting
problems, particularly in very high wind loading conditions.

For about twenty years or so, this standard side mount configuration reigned supreme, although towards the end of the 1980’s, the Over the Top (OTT) configuration started to grow in popularity.

That aside, their is still a comprehensive range of units being built for both indoor and outdoor use, with load capacities ranging from 1.5 up to 50 Kgs.

Predictably, the majority of pan and tilt heads now built are of the OTT type, as shown in the picture above.

Over the Top (OTT) Pan and Tilt (P/T) heads>
